- Temperature Controller
- Microcontroller Based
- Heating Media
- By Silicon Oil
- Temperature Range
- +5°C above ambient to 300ºC
- Readability
- 0.1°C
- Temperature Accuracy
- ±0.5°C
- Overheating Protection
- 20ºC above expected melting point
- Safety Features
- Heater will not turn on, if stirrer is off
- Temperature Calibration
- On-site with calibrated thermometer / temperature indicator / Pharmacopeia Standard
- Magnetic Stirrer
- Built-in with soft touch Key speed controller
- Melting Capillary Port
- Three
- Boiling Tube
- One
- Restore Factory Set Calibration Data
- Possible by user
- Heating Before Set Point (EMP)* : Automatic heating depending upon temperature difference
(* EMP: Expected Melting Point)
- Heating After Set Point (EMP)*
- Approx. 1.0°C/min
- Temperature Sensor
- Simplex PT-100
- Glass Melting Capillary
- OD: 1.4 to 1.6mm | ID: 1.0mm | Length: 100mm | One End Sealed
- Sample Filling Height
- 3mm
- Viewing of Melting Capillary
- 10x Magnifying Glass
- Display of Melting Range
- Simultaneous MP1 (On set temperature) & MP2 (Clear temperature)
- Display
- 16 x 2 Line Alphanumeric Backlit LCD
- Keypad
- Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

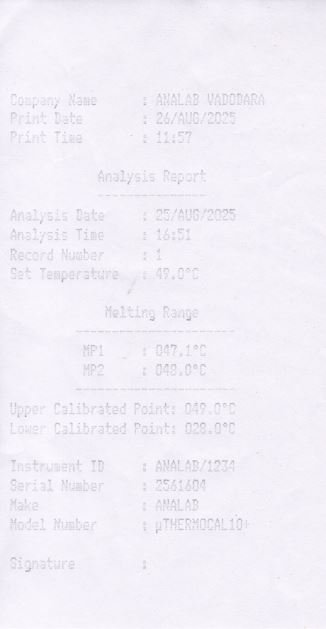

- Report Formation
- As per Non-GLP Compliance
- Printer Interface
- Centronics Parallel Port / Serial (RS-232 C) Port
- Printer
- 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
- Power Supply
- 230 VAC ± 10%, 50 Hz
- Dimensions:
â— Net Dimension: 36 x 32 x 27 cm (L x W x H)
â— Gross Dimension: 48 x 40 x 36 cm (L x W x H)
- Weight:
â— Net Weight: 7 kg
â— Gross Weight: 10Â kg
Download brochure
