- No. of Station
- Two
- USP Compliance :
1) USP1 (300 taps per min.)
2) USP2 (250 taps per min.)
3) USP3 (55 taps per min.) – Not Available with this Model
- Stroke Height
- 14mm ±2mm / 3mm ±0.2mm
- Stroke / Minute
- 300 ±10, 250 ±10, 55 ±5
- No. of taps
- 1-9999
- Rotating and tapping motion
- Simultaneous
- Display of Strokes/min
- Simultaneously - Set & Actual
- Cylinder Supports
- 100ml and 250 ml
- Pharmacopeia Complies
- As per USP, IP, Ph. Eur.
- Calculation of result
- Bulk Density, Tapped density, Compressibility index and Hauser ratio.
- Display
- 16 x 2 Line Alphanumeric Backlit LCD
- Keypad
- Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS

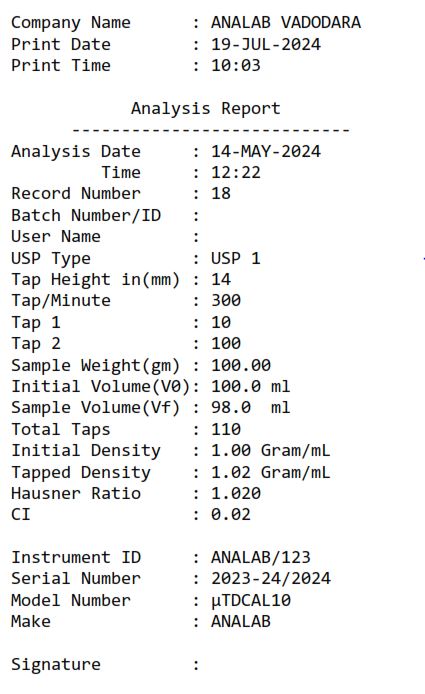

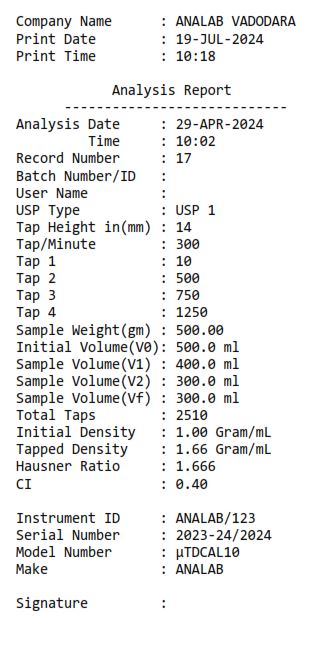

- Analysis Data Storage : More than 500 analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, Tap/minute, Tap Hight, Tap Count 1, Tap Count 2, Tap Count 3, Tap Count Final, Tap Density, Bulk Density, Compressibility Index, & Hausner Ratio, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
(*: Not possible to enter data by instrument keypad but it will be handwritten)
- Searching of data
- With record number by scrolling.
- Report Formation
- As per Non-GLP Compliance
- Printer Interface
- Centronics Parallel Port / Serial (RS-232 C) Port
- Printer
- 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
- Power Supply
- 230VAC ± 10%, 50 Hz
- Dimensions:
â— Net Dimension: 38 x 31 x 24 cm (L x W x H)
â— Gross Dimension: 48 x 44 x 51 cm (L x W x H)
- Weight:
â— Net Weight: 8.5 kg
â— Gross Weight: 15Â kg
